SPECIFICATIONS

Brand Name: BIGTREETECH

High-concerned chemical: None

Item Type: Motherboard

Model Number: BTT SKR MINI E3 V3.0

Origin: Mainland China

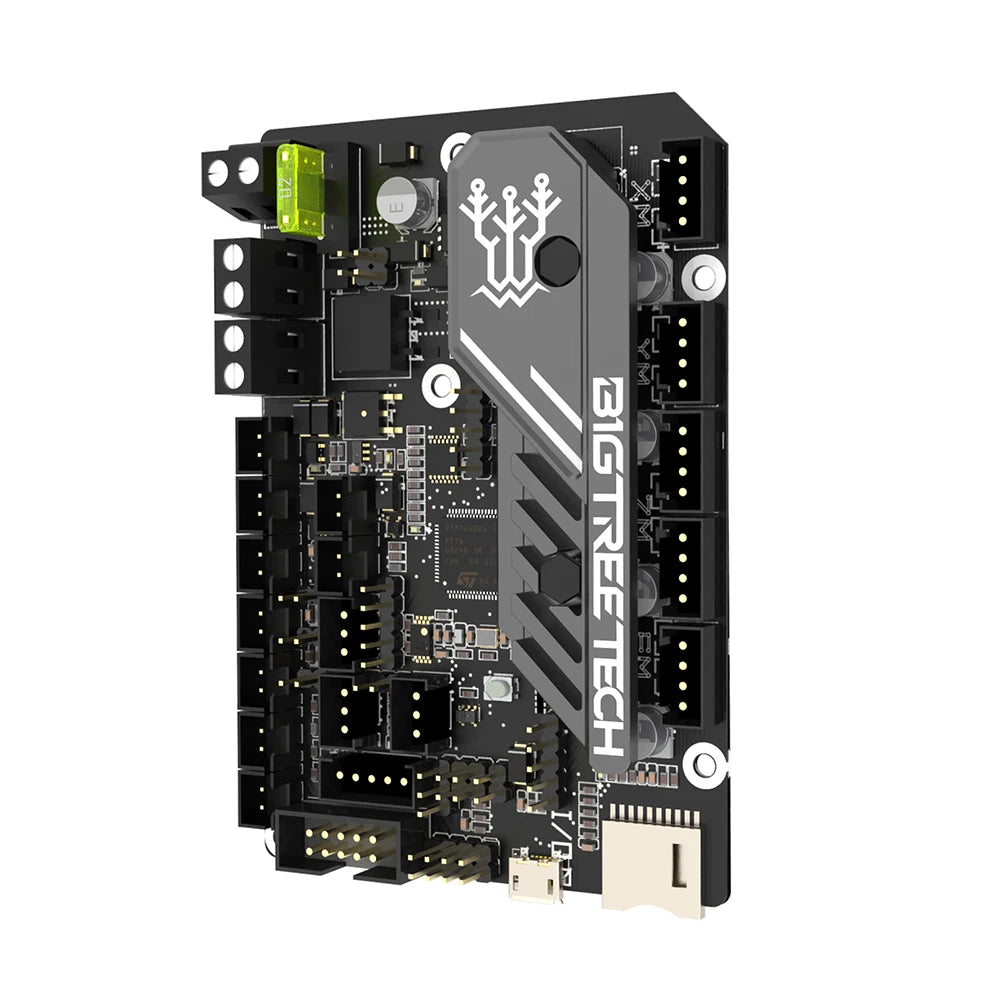

Introduction：

SKR MINI E3 V3.0 is an upgraded version of V2.0, which has the following features:

1. New ID design upgrade

2. G0 series MCU- STM32G0B1RET6

3. Heat sink design upgrade, increase the heat dissipation area, greatly improve the heat dissipation performance

4. Increase the fan that can control the heat dissipation of the device to lower the temperature of the device

5. Increase the thermistor interface protection circuit to prevent burning of the master control chip

You can download the firmware from our website and use it:

https://github.com/bigtreetech/BIGTREETECH-SKR-mini-E3

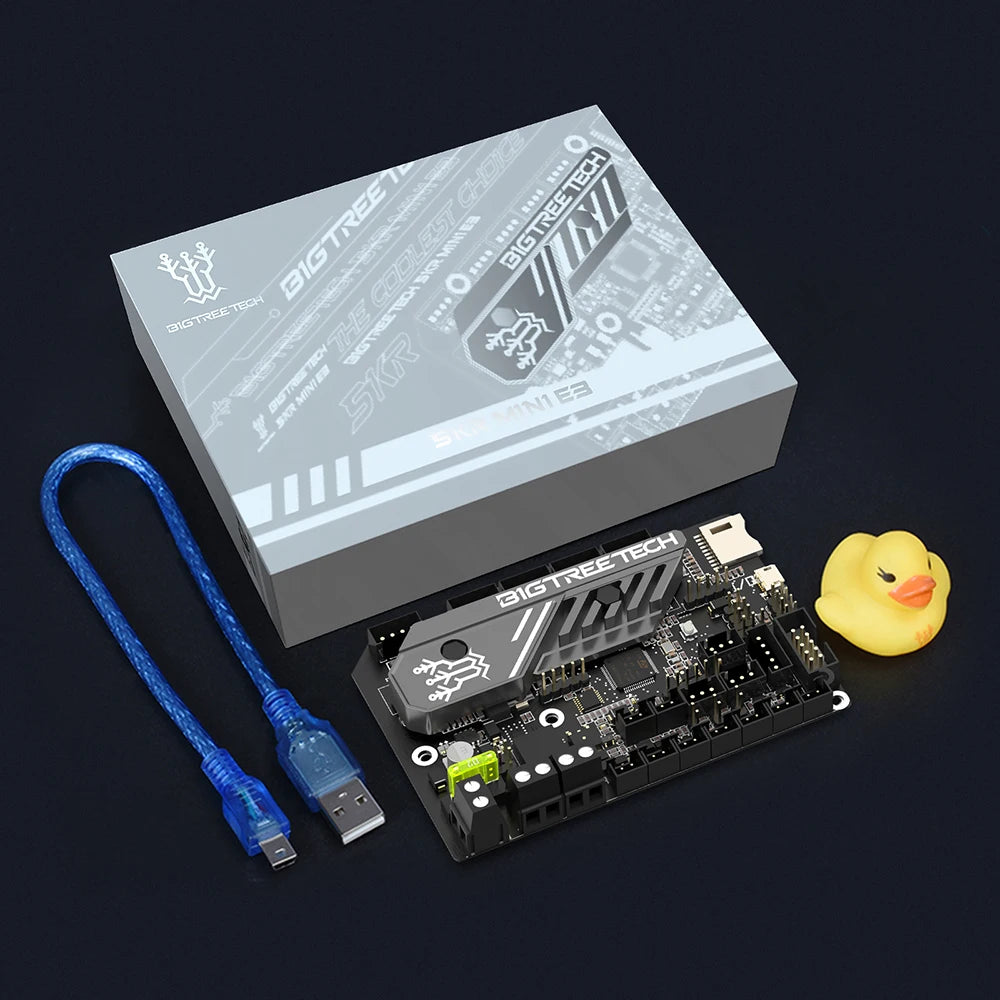

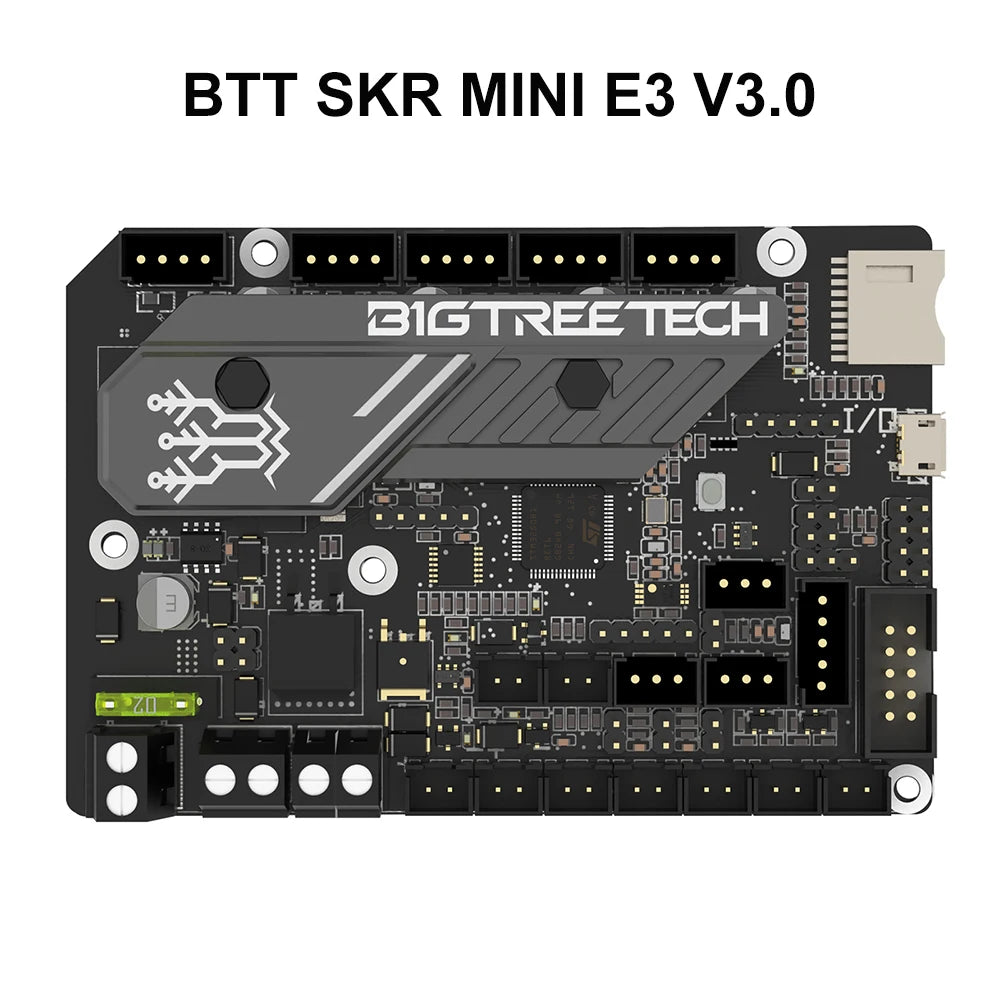

Type 1: 1PC SKR MINI E3 V3.0BIGTREETECH SKR MINIE3 V3.0

New Break Through The Rebirth of MINI E3SPECIFICATIONSize DiagramWiring DiagramSKR MINI E3 V2.0 VS V3.0Main control chip

ARM Cortex-MO+STM32GOBIRET6/STM32GOBORET6

Note:

  Regardless of the MCU used, the SKR MINI E3 V3.0 features the following: Integrated4 TMC2209 drivers (with UART interface), 3 CNC fan ports, support 4 stepper motor drivers(X, Y, Z (dual Z-axis), E0), and 2 NTC ports. Additionally, it also provides the followinginterfaces: heated bed xl, heater cartridge x1, SD Card x1, Micro USB x1, LCD display x1.TFT display x1, auto power-off xl, power loss recovery x1, RGB x1, BLTouch x1,filament runout sensor x1, and X/Y/Z-axis limit switch x1. We will randomly shipthe SKR MINI E3 V3.0 equipped with either the STM32GOBORET6 or the STM32GOB1RET6Double Z-axis interface

Add parallel double Z-axis interfacesMore stable runningCompatibility

Compatible with Ender 3, Ender 3 ProEnder 5,CR-10...Better protectionand safety design

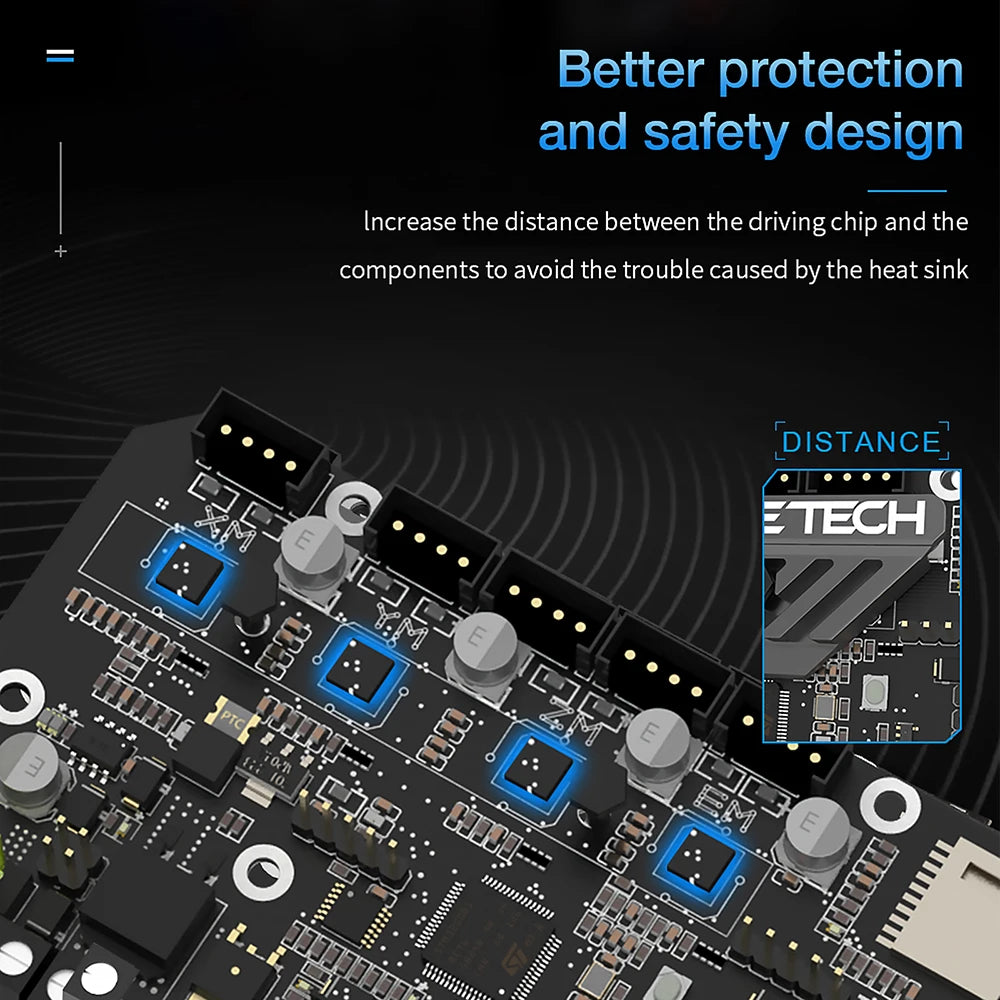

Increase the distance between the driving chip and thecomponents to avoid the trouble caused by the heat sinkSupport more functions expansion

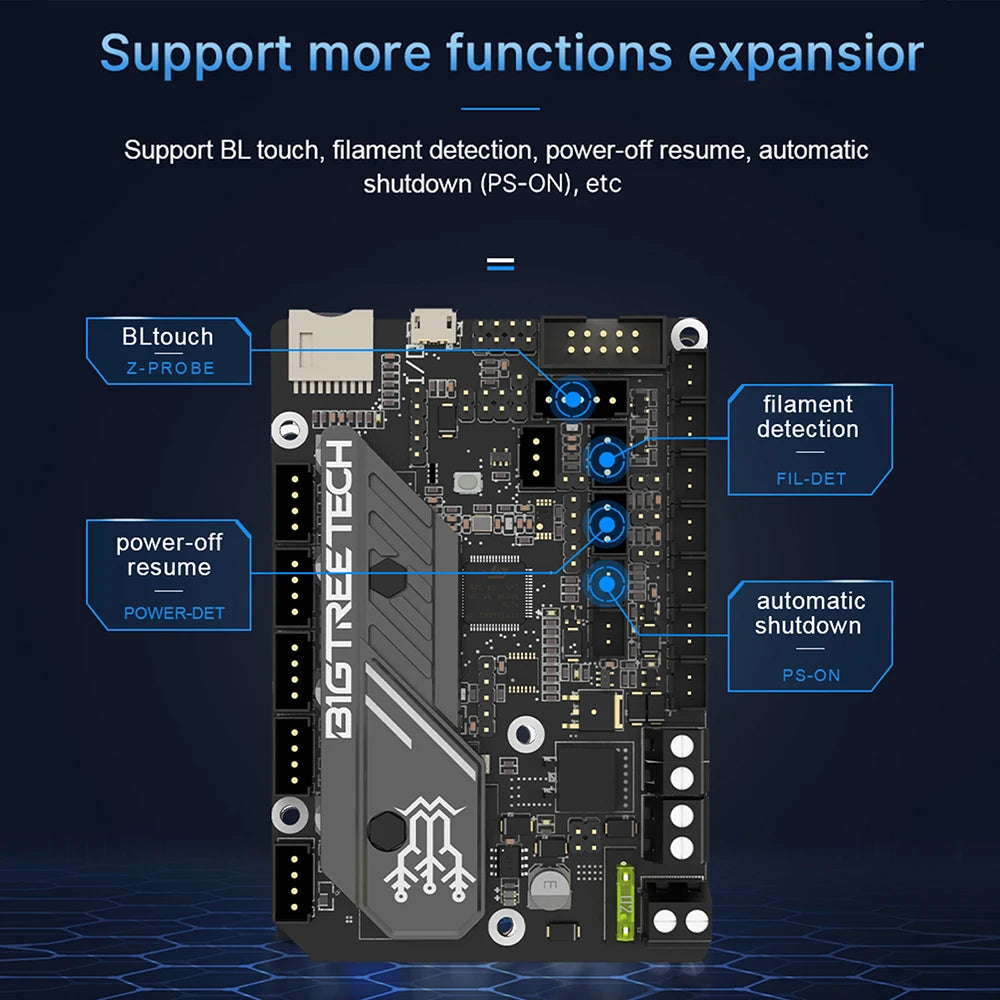

Support BL touch, filament detection, power-off resume, automaticshutdown (PS-ON), etcAdd 5V power supply

5V power supply with BL touch,TFT and RGB interfacesBETTER THERMAL PERFORMANCE

Larger heat dissipation areaBetter heat dissipationOnboard Sensorless HomingFunction

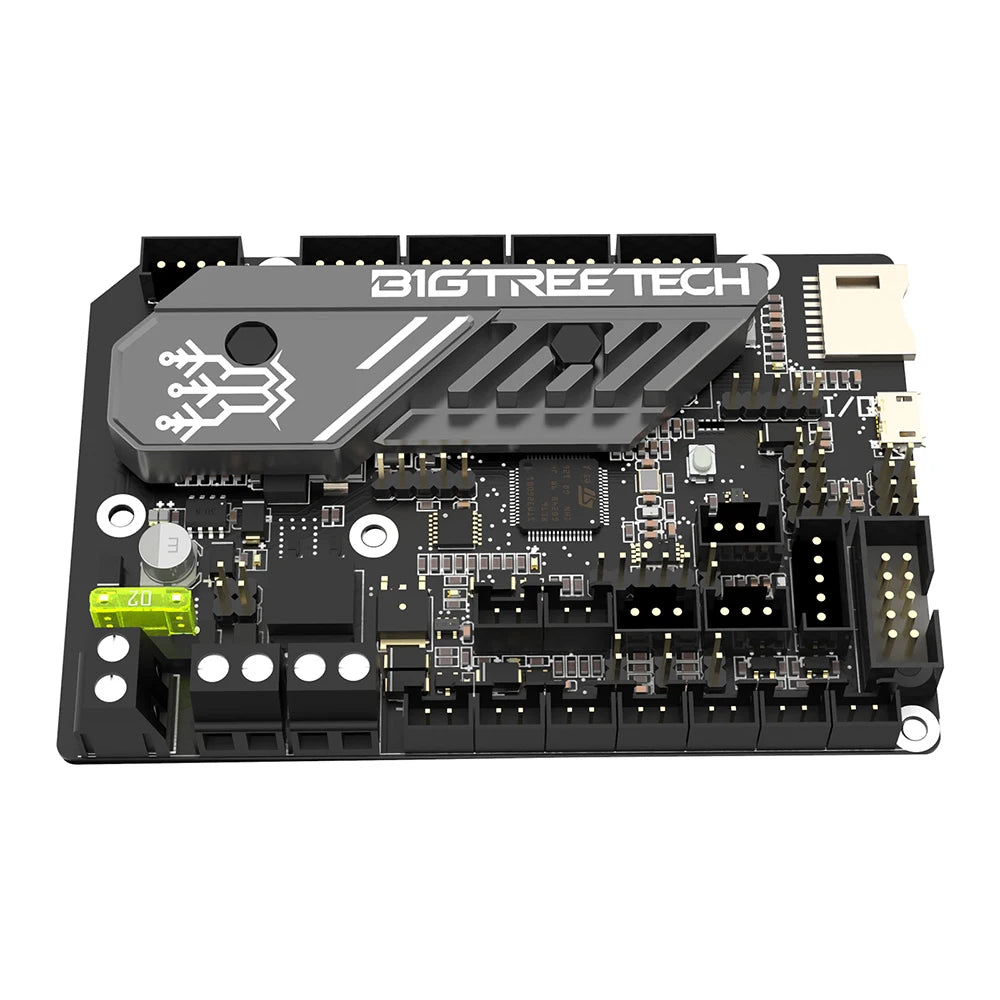

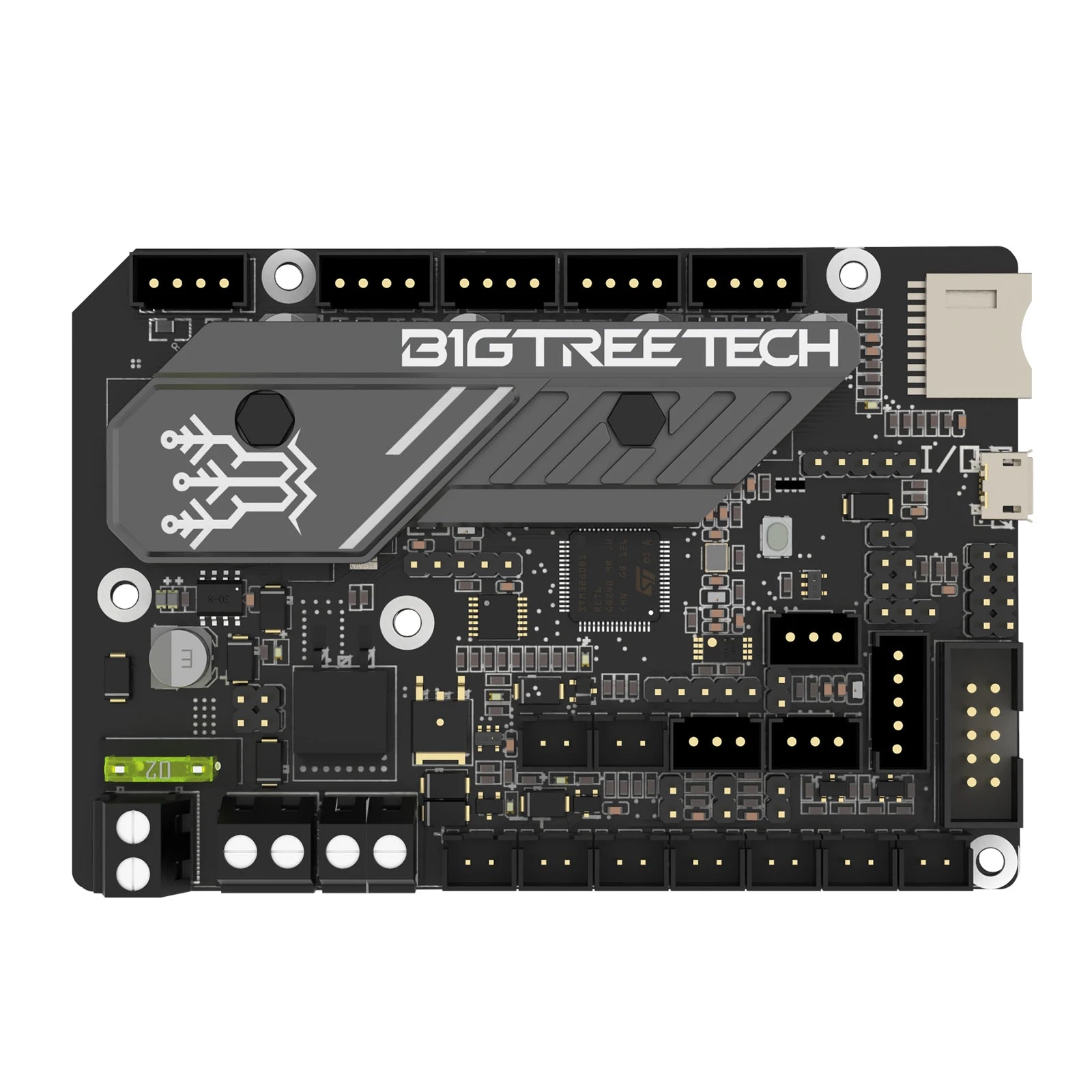

Easy to operatePRODUCT DISPLAY
